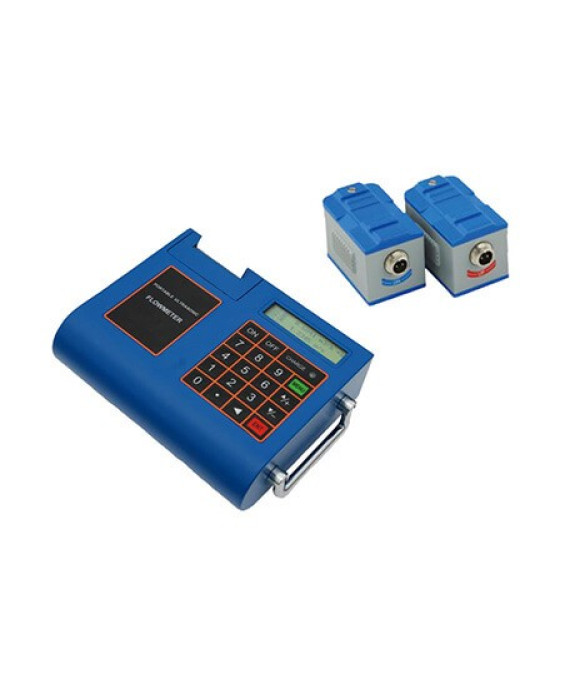

PUF Ultrasonic Water Flowmeter with Printer
PUF Ultrasonic Water Flowmeter with Printer
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
Printer Ultrasonic Water Flowmeter advanced circuit design, the integration of the latest semiconductors, the user-friendly software interface both in English and Chinese languages and small-sized PCB board.
Application
- Water supply
- Sewage treatment
- Sea water desalination
- Pure water
- Ultra-pure water
- Industrial circulating water
- Diesel fuel, oil flow metering, etc
Advantages
1. Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation.
2. Built-in printer: Built-in mini thermal printer with instant and timing print function, also you can print more than 20 kinds of measuring results if you set in advance.
3. Built-in data logger: Uplink over 20 measuring data to computer or internet.
Technical Data
Items | Spec |
Main Unit | 2 line x 20 character LCD with backlight Working temperature: -20--60℃ Working temperature: -20--60℃ Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS485 serial port, can download the newest software upgrading on our company's website |
Transducers | TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110℃ DN15-100mm, liquid temperature ≤110℃ TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110℃ size:DN50-1000mm, liquid temperature ≤110℃ |
Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
Flow velocity range | 0-±30m/s |
Accuracy | Better than ±1% |
Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) orAC 220V |
Power Consumption | 1.5W |
Charging | Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light |
Weight | Net weight: 2.5kg (main unit) |
Remarks | With a high strength carrying case suitable for normal and harsh environment |
Related Products
HLU Ultrasonic Liquid Level Meter
Ultrasonic liquid level meter combines ultrasonic sensors, temperature sensors, ultrasonic serv..

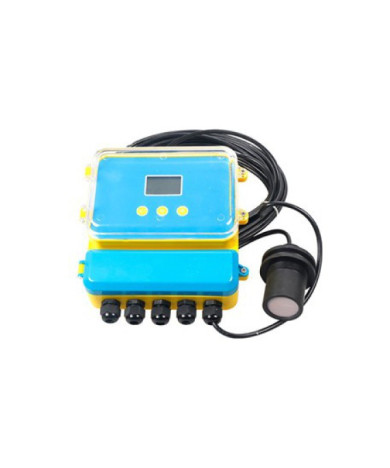

US9000 Long Range Ultrasonic Level Sensor
US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ult..
UF2000B Economic type Clamp-on Ultrasonic Water Flowmeter
The Economic type Clamp-on Ultrasonic Water Flowmeter can be applied to a wide range of pi..
UF2000F Fix Mount Ultrasonic Water Flowmeter
The Fix-mounting ultrasonic flow meter can be applied to a wide range of pipe flow measure..
UF2000M Clamp On Ultrasonic Flow Meter
Clamp On Ultrasonic Flow Meter is a non-contact type clamp-on flowmeter, which can not only mea..

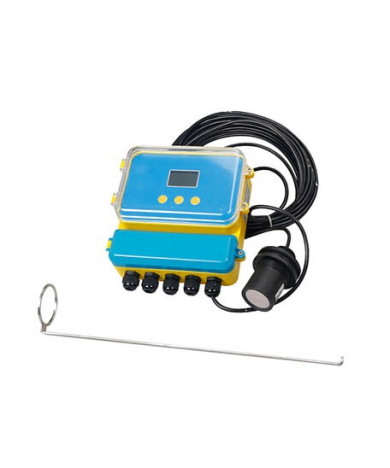

UFL9000 Open Channel Flow Meter
