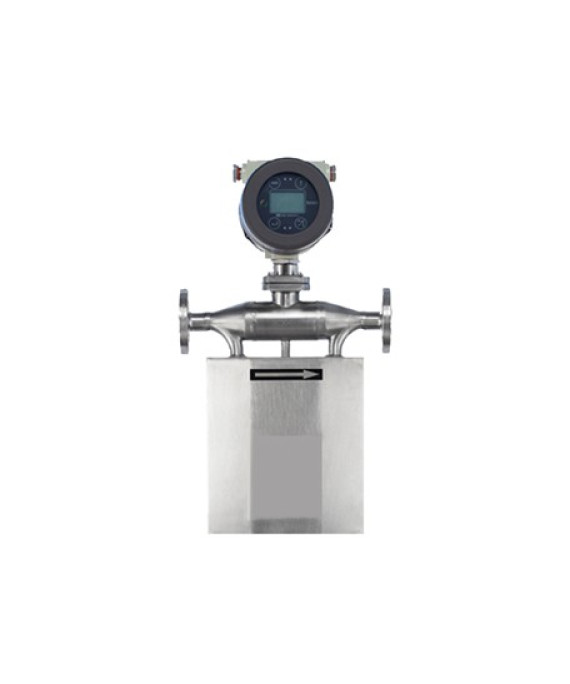

HQF Mass Flow Meter

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

Vortex flow meter is a volume flow meter that measures the volume flow of gas, steam or liquid and the volume flow or mass flow of the standard condition based on the Karman vortex principle. It is mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other medium

Pdf Download

Application

- Domestic sewage discharge

- Factory wastewater control

- Air, oxygen and other flammable gases

- Thermal power station

Advantages

1. Various types of pipelines are installed, and the scope of application is wider.

2. It is suitable for flow monitoring of various types of liquids or other flammable and explosive gases.

3. Self-developed core processor, mass flow accuracy up to ±0.002.

4. Factory-operated shop, minimum order of one piece, worldwide free shipping.

Technical Data

Parameter	Specification
Diameter	DN3mm-250mm
Medium temperature	-50℃~+150℃ (-200℃~+350℃ customizable)
Environmental Temperature	Sensor: -41℃~+150℃ Transmitter:-41℃~+80℃
Accuracy of flow rate measurement	±0.5%, ±0.2%,±0.1%±[(stability at zero point)/flow rate×100]% flow
Accuracy of density measurement	±0.002g/cm2, ±0.001g/cm2
Repeatability	±0.10%, ±0.05% flow±[½(zero point stability/flow value)×flow
Output signal	4～20mA load resistance <500 Ω(Instantaneous flow or density optional, 0～10kHz Instantaneous flow pulse signal); 485 (MODBUS-RTU) Hart
Electrical Port	1/2”NPT
Explosion-proof grade	EX d ib II C T6 Gb
Protection grade	IP67
Work Temperature	-25～75℃
Storage Temperature	-40～85℃
Power supply	24V DC(220V AC or 24V DC and AC customizable )
