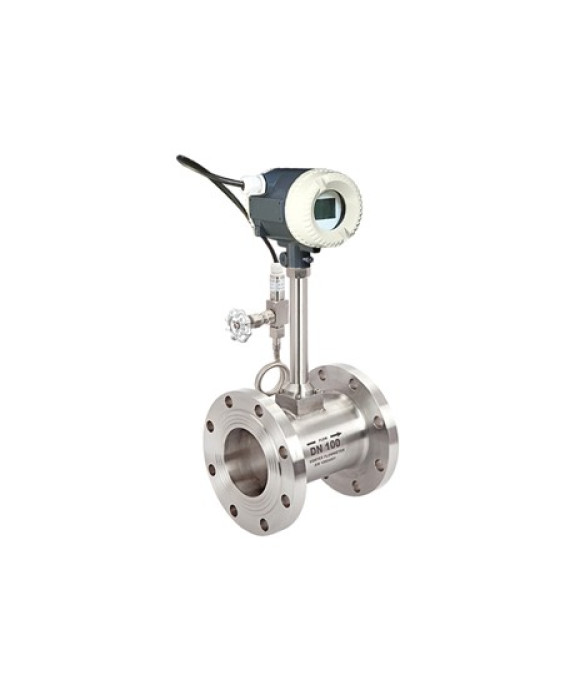

HGVF Vortex Flow Meter
Vortex flow meter is a volume flow meter that measures the volume flow of gas, steam or liquid and the volume flow or mass flow of the standard condition based on the Karman vortex principle. It is mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other medium
Application
- Industrial production process control
- Energy metering
- Water project
- Environmental protection project
- Pipeline transportation
Advantages
1. The structure is simple and firm, with no moving parts, high reliability, and very reliable long-term operation.
2. The output is a pulse signal proportional to the flow rate, with no zero drift and high accuracy.
3. The detection sensor does not directly contact the measured medium, with stable performance and long life.
4. The measurement range is wide, and the range ratio can reach 1:10.
Technical Data
| Pipe Size | DN 15 mm ~300 mm | ||
| Medium Temperature | -20°C~+120°C | ||
| Flow Ouput Signal | 4~20mA , pulse, RS485, Hart | ||
| Accuracy | ±1.5%F.S | ||
| Supply Voltage | 24V±15% or battery 3.0-3.6V |
Related Products
HQF Mass Flow Meter
Vortex flow meter is a volume flow meter that measures the volume flow of gas, steam or liquid ..
HRF Roots Flow Meter
HRF600-S radar flow meter is developed based on PCR radar measurement technology. The flowmeter..
HTF Target Flow Meter
Target flow meter is developed based on the measurement principle of the strain gauge (capaciti..

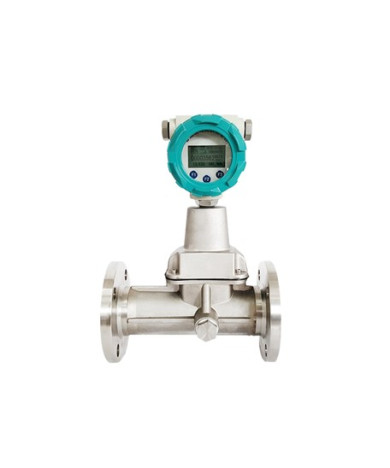

HVPF Precession Vortex Flow Meter
Precession vortex flow meter adopts micro-processing technology, which has the advantages of st..

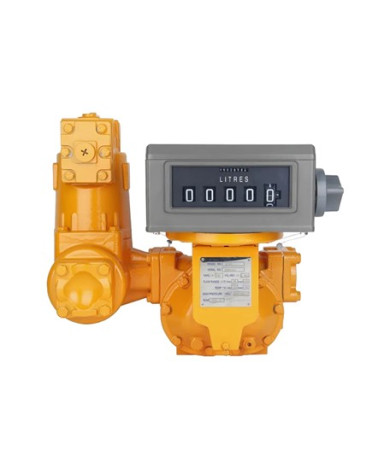

VF Volumetric Flow Meter
