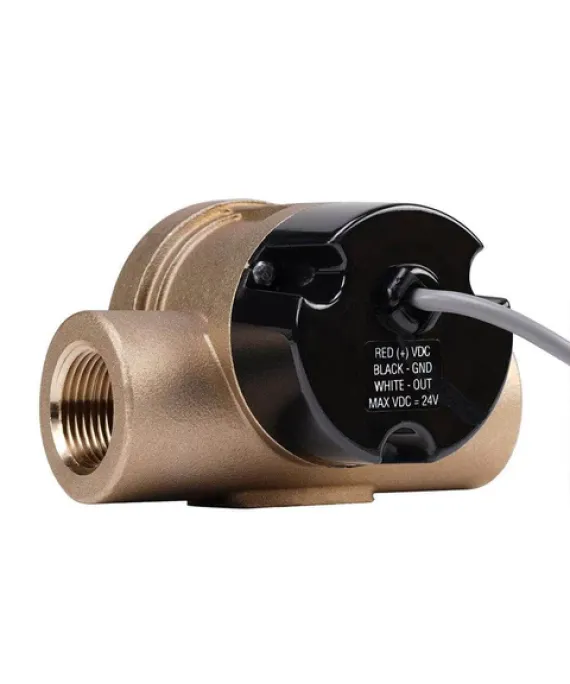

Description

• Tinned lead connector
• Accurate to ± 5%
• Material Brass
• 3/4” Female NPT Input/Output
• Minimum flow rate 19 L / min (5 GPM)
• Maximum flow rate 114 L / min (30 GPM)
• Weighs 796.5g
• Operating temperature -29º C to 100º C (-20º F to 212º F)
• Max operating pressure 1378.95 KPA (200 PSI)
• Max viscosity 200 SSU
• 71.1cm (28”) long 3 lead cable
• Dimensions 100mm X 75mm (3.9″ X 2.9″)
• Food Safe
• Gasoline Safe
• Diesel Safe
• Kerosene Safe
• Includes 1 Flow Connector Board (soldering required)

Data Protocol

• UART asynchronous serial connectivity
• (RX/TX voltage swing 0-VCC)
• Operating voltage: 3.3V to 5

Download:

https://atlas-scientific.com/files/3-4_flow_datasheet.pdf

https://atlas-scientific.com/files/RoHS-Certificate.pdf

https://atlas-scientific.com/files/Sen-205F.zip
