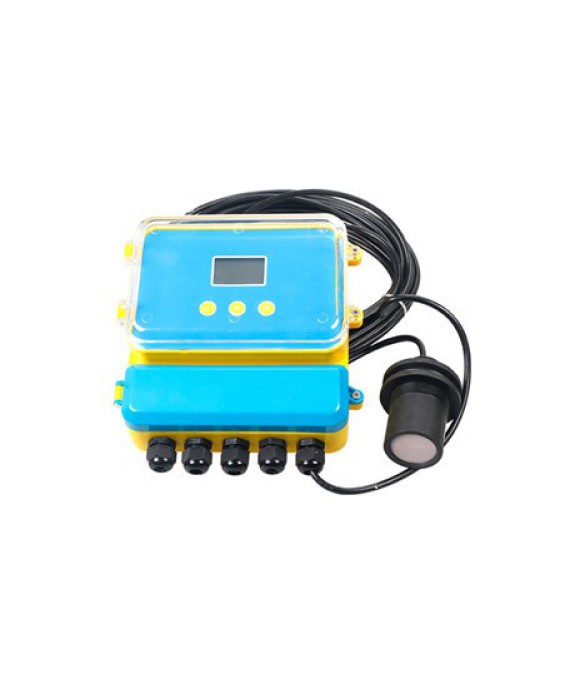

US9000 Long Range Ultrasonic Level Sensor

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Pdf Download

Application

- Liquid level measurement

- Solid level measure

- Beverages level monitoring

- Non contact measurement in farm warehouse

Advantages

1. Support M49*1.5 mm threaded into type installation and coil clamping type installation

2. Less than 9° Beam angle design ,less than 200ms responsible time to make sure more accuracy

3. Housing adopts the NLEPE synthetic material IP66 waterproof

4. High quality terminal blocks ,Excellent anti-jamming is strong, long term stability

Technical Data

Level Range	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m
Accuracy	0.5%-1.0%
Analog Output	- 2 groups for single channel and 4 groups for double channels (optional) - AC 250V/ 8A or DC 30V/ 5A, state programmable
Relay Output	- Display instrument: -20~+60ºC - Probe: -20~+80ºC
Ambient Temperature	- Display instrument: -20~+60ºC - Probe: -20~+80ºC
Power Supply	- Standard configuration: 220V AC+15% 50Hz - Optional: 24VDC 120mA - Customized: 12VDC or battery powered
Resolution	3mm or 0.1%FS (Max of them)
Display	English language display: Level measurement Distance measurement, transmission value
Water Proof	IP65(Meter), IP68(Sensor)
