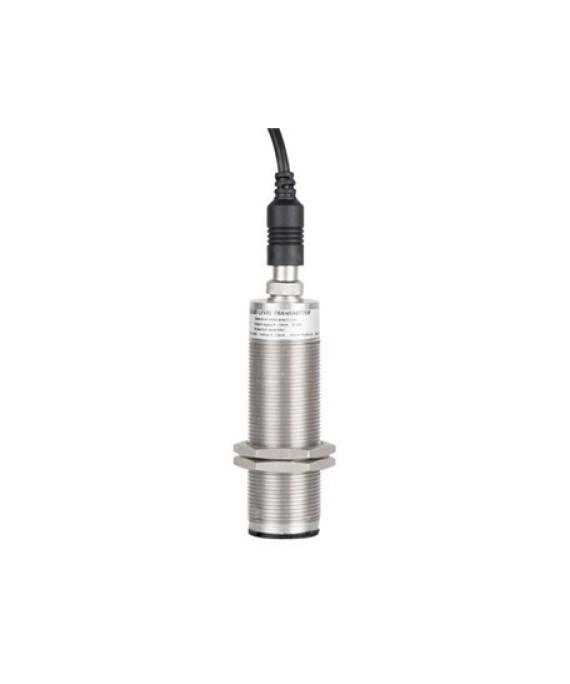

UE3006 Ultrasonic Water Level Sensor
UE3006 Ultrasonic Water Level Sensor
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
UE3006 ultrasonic water level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application
- Non contact distance level measurement
- Food level monitoring
- Industrial fuel level measurement
- Tank level measurement
Advantages
1. Support M49*1.5 mm threaded into type installation and coil clamping type installation
2. Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
3. Housing adopts the NLEPE synthetic material IP66 waterproof
4. High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Technical Data
| Brand: | HOLYKELL | ||
| Model: | UE3006 | ||
| Blind area | ≥ 6cm(1m range);≥15cm(2m range) | ||
| Beam angle | ＜9° | ||
| Accuracy | 0.25%F.S. or 3 mm | ||
Resolution: | 0.1%F.S.（0.5mm min.） | ||
Temp drift: | 0.05%/ºC （build-in temperature compensation ） | ||
Power supply | DC12-24V/50mA | ||
Measuring Frequency | 20 KHz~43.0KHz | ||
| Consumption | ＜1.5W | ||
| Min. resolution | 1mm | ||
| Protection class | IP65 (default); IP67, IP68 (customized!) | ||
| Operation temp | -20℃ ~60℃ | ||
| Housing | SUS304/Copper chrome plating/ABS | ||
| Cable | User defined (with connectors) | ||
Dimension | Φ41mm x 106mm x M30 | ||
| Installation | M30*1.5 male thread | ||
