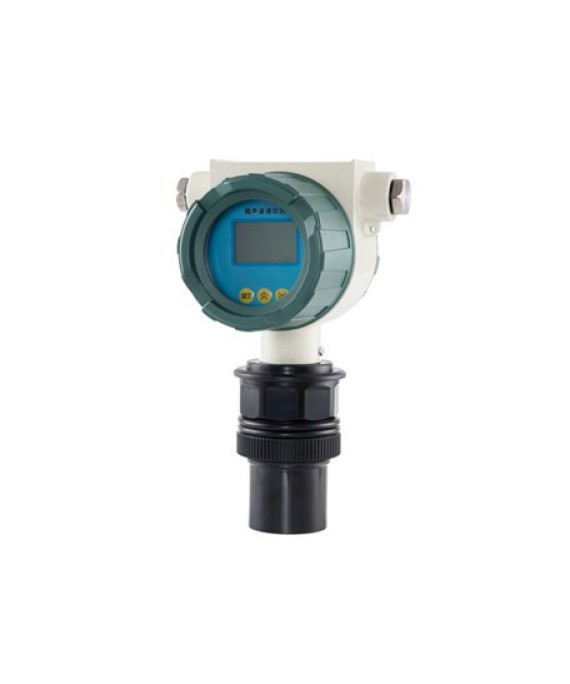

UE2000 Ultrasonic Fuel Level Sensor
UE2000 Ultrasonic Fuel Level Sensor
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
Ultrasonic fuel level sensor is specially designed for fuel and flammable liquid level measurement. It has a built-in LCD display for field calibration.
Application
- Ultrasonic fuel level measurement
- Non contact oil level measurement
- Diesel level monitoring
- Food grade level measure
- Butter storage tank level measurement
Advantages
1. Non contact fuel level measuring instrument
2. Built-in temperature sensor measures and displays temperature simultaneously
3. Intergrative type easy installation with higher explosion proof
4. High accuracy 0.25%FS, long measure range 50m maximum
5. Using ATMEL computing chip, data processing speed is more than twice that of other sensors
Technical Data
| Level Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Output | 4-20mA, 1-5V, 0-5V, 0-10V |
| Bline Zone | 0.5%-1.0% |
| Power Supply | 12VDC,24VDC |
| Working Temp | - Display instrument: -20~+60ºC - Probe: -20~+80ºC |
| IP Rating | Display instrument: IP66, probe: IP68 |
