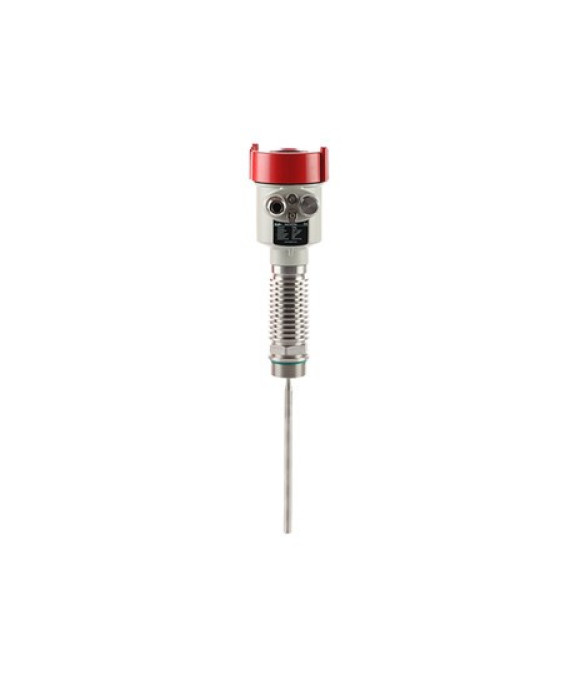

HR682 Guided Wave Radar
Guided Wave Radar for corrosion medium ,that is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.
Application
- Liquid Level - Corrosive Liquids Level - Wine - Seawater - Chemical Liquid
Advantages
1. Guided wave radar level meter can be used in a variety of complex conditions
2. Suitable for a variety of complex conditions and applications
3. High temperature, high pressure and low dielectric constant media. Pulsed work
4. Transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment
Technical Data
Suitable for Medium | Liquid,especially corrosive liquids |
Explosion-proof Grade | Exia IIC T6 Ga/Exd ia IIC T6 Gb |
Measuring Range | 20m |
Frequency | 500MHz-1.8GHz |
Antenna | Full PTFE sealing cable type or rod antenna |
Accuracy | ±10mm |
Process Temperature | （-40～200）℃ |
Process pressure | （-0.1～2）MPa |
Signal output: | （4～20）mA/HART |
The Scene Display | Four LCD/Can be programmed |
Power Source | Two-wire (DC24V) ;Four-wire（DC24V/AC220V） |
Shell | Aluminum /Plastic |
Connection | Flange (optional) / Thread |
