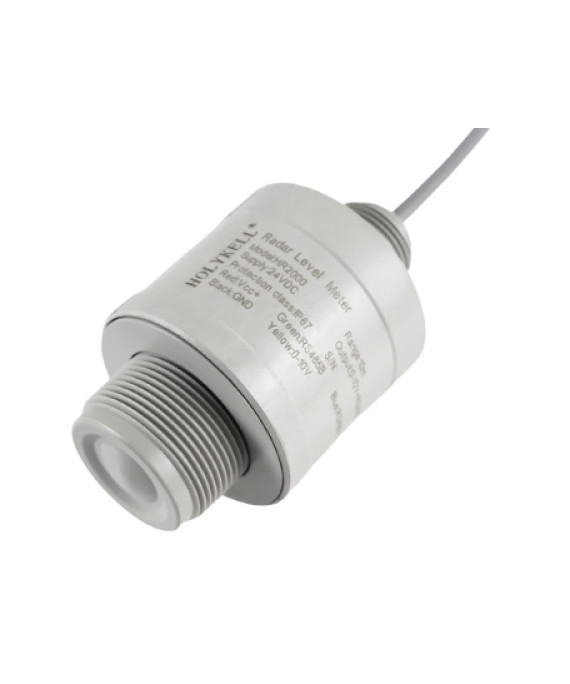

HR2000 80GHz High Accuracy Radar Level Sensor

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

The HR2000 is a 80GHz mmWave radar level sensor. Its advanced radar technology and user-friendly PC interface ensure precise measurements, high sensitivity, and seamless integration. This non-contact sensor offers contamination-free, low-maintenance level monitoring solutions. Its compatibility with control systems allows for effortless integration into industrial processes, enabling remote monitoring and control, ideal for various industrial applications.

Pdf Download

Application

- Water & Sewage treatment

- Oil & gas industry

- Hydrological monitoring

- Pharmaceutical industry

- Food and beverage manufacturing

- Chemical industry

- Process control

Advantages

1. ±2mm/5mm/10mm accuracy with a wide detection range

2. Advanced radar technology, unaffected by condensation, rain, vapor, corrosion, dielectric constants...

3. Easily connects to host computers & tank-side meters with dedicated software

4A. wide power supply range and minimized power consumption

5A. top-mounted bubble level design for straightforward setup

6. On-site calibration not required

Technical Data

Working Pressure	-1~3bar
Measuring Range	- 0.2-10m; 0.2-20m - For measuring range >10m, it supports 4-20mA+RS485 and regular power supply only
Measurement Accuracy	±10mm(typical), ±5mm(customized)
Frequency	80GHz
Signal Output	- 12-30Vdc: 0-5V/0-10V/4-20mA+RS485 Modbus RTU - 3.3-5.5Vdc: RS485 Modbus RTU only
Power Supply	- 12-30Vdc(Typical type) - 3.3-5.5Vdc(Low voltage & low power consumption type)
Working Temperature	-40~85℃
Protection Class	IP67/IP68(3 bar) optional
Material of wet parts	PVDF(Anti-corrosion type)
Material of housing	PA6 nylon + Fiberglass
