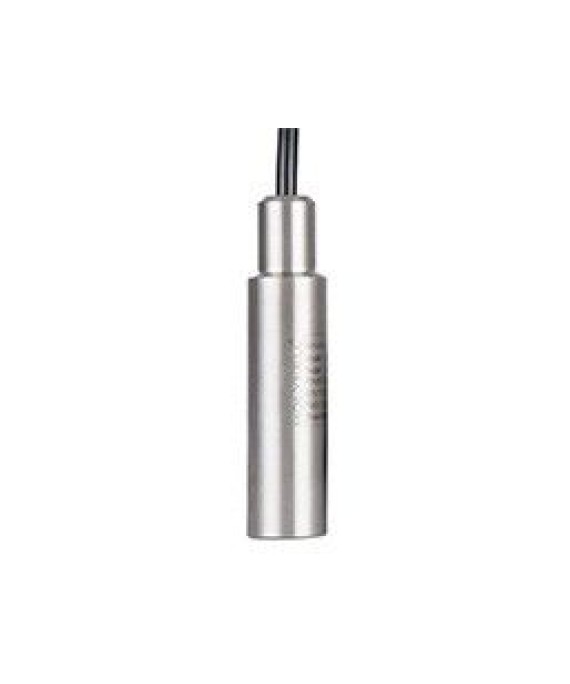

HPT613-S Submersible Ceramic Capacitance Level Sensor
HPT613-S Submersible Ceramic Capacitance Level Sensor
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
HPT613-S Submersible ceramic capacitance level sensor is a liquid level measuring instrument with high stability and precision. It adopts fully sealed 316SS stainless steel body and ceramic core body, high explosion-proof and easy to clean.
Application
- Water level measure
- Corrosive liquid level measurement
- Level measurement in telecom base station
- Oil level measurement
Advantages
1. Surge protection from lightning strikes and voltage spikes
2. Ceramic pressure cell resistant to 10x burst pressure
3 Rugged design: Ingress protection up to IP 68
4. Lightning (Surge) Protection
5. Excellent Long Term Stability
6. CE/ATEX Certificate approved
Technical Data
Range | 0~1,...200m H2O optional |
Output | 4~20mA;4-20mA+HART;RS485 RTU Modbus |
Accuracy | ≤ ±0.25%F.S (Typical); ≤ ±0.1%F.S (optional) |
Working temperature | -20-80℃(Corrosive medium) |
Power supply | 7-30Vdc 12-30Vdc 3.5-36Vdc |
Medium Compatible | Compatible with 316L Stainless Steel or Titanium Alloy& PTFE optional |
Certificate | CE,ExiaII CT6 Ga |
