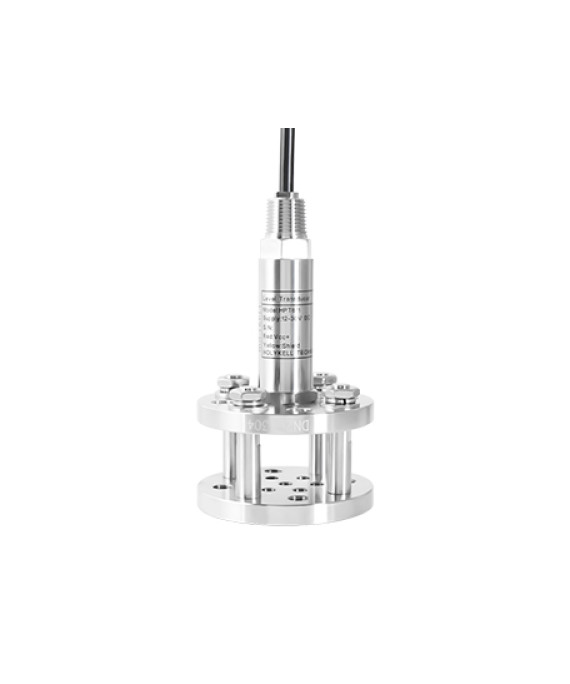

HPT611 Anti Clogging Slurry Level Sensor
HPT611 Anti Clogging Slurry Level Sensor
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
The anti clogging slurry level transmitter is the most effective solution for sewage or waste water with viscous medium level measurement.
Application
- Sewage water level in lift station
- Slurry level measurement
- Sewage water take level monitoring
- Mud water level measurement
Advantages
1. All 316L stainless steel construction for durability
2. Open double flange design
3. Added weight prevents movement of the transmitter
4. Cable withstand over 200 pounds of strain
5. High water-proof protection grade IP68
Technical Data
Range | 0~100M H2O optional |
Output | 4-20mA,0-5V,0-10V,0.5-4.5V,RS485 Modbus RTU |
Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,3.5-36Vdc |
Accuracy | 0.25%F.S; 0.5%F.S optional |
Working temperature | -40-80℃(non-corrosive medium) |
Temp Compensation | 0℃~50℃ |
IP rating | IP68 |
