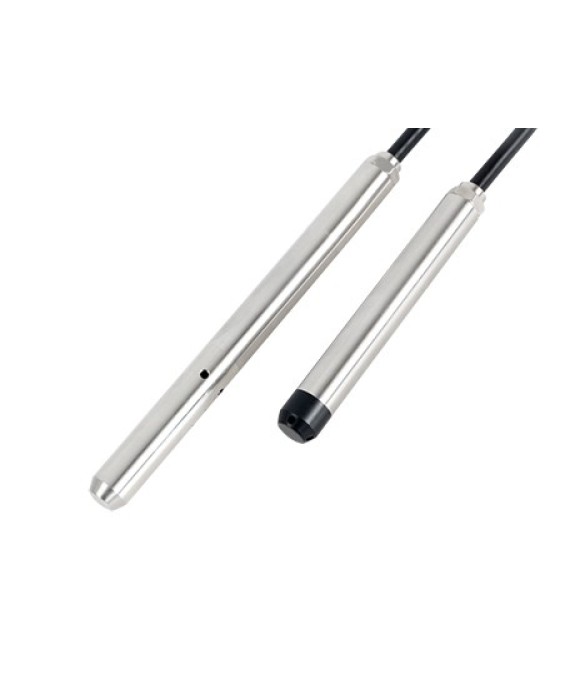

HPT607-E Smaller Diameter Submersible Borehole Level Sensor

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

This submersible borehole level sensor is a perfect device for groundwater, borehole and well water level measurements. It features a small diameter Ø16 housing and unique filtration designs.

Pdf Download

Application

- Deep wells - Borehole - Groundwater level monitoring - Drilling platform - Surface water monitoring - Control of lift and pumping station - Level measurement in confined space

Advantages

1. A Ø16mm only probe for smaller wells or boreholes

2. Two unique filtration designs for different ranges

3. Automatic temperature compensation

4. Lightning protection, shock and friction resistant

5. Sensor compatible with most monitoring equipment

6. Fully sealed IP68 structure for long immersion in water

Technical Data

Parameter	HPT607-E
Pressure Range	0-2 Bar…..20 Bar / 0-20m...200m H₂O Optional 0-0.5 Bar…..2Bar / 0-5m...20m H₂O Optional (by customized)
Accuracy	≤ ±0.5%F.S@25 degree C (Typical)
Long Stability	0.15%F.S±0.05%
Working Temp	-40-80℃(non-corrosive medium)
Temperature Compensation	0℃~50℃ (Full temp span 1%F.S. accuracy)
Medium compatible	Compatible with 316L Stainless Steel
Output	4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU
Power Supply	10-30Vdc,5Vdc±5%,3.5-36Vdc
Zero Temp. Drift	0.2%FS/℃(≤100kPa); 0.5%FS/℃(>100kPa)
FS Temp. Drift	0.02%FS/℃(≤100kPa); 0.05%FS/℃(>100kPa)
Electronic connection	Fixed cable and water proof IP68
Response time	≤10ms
