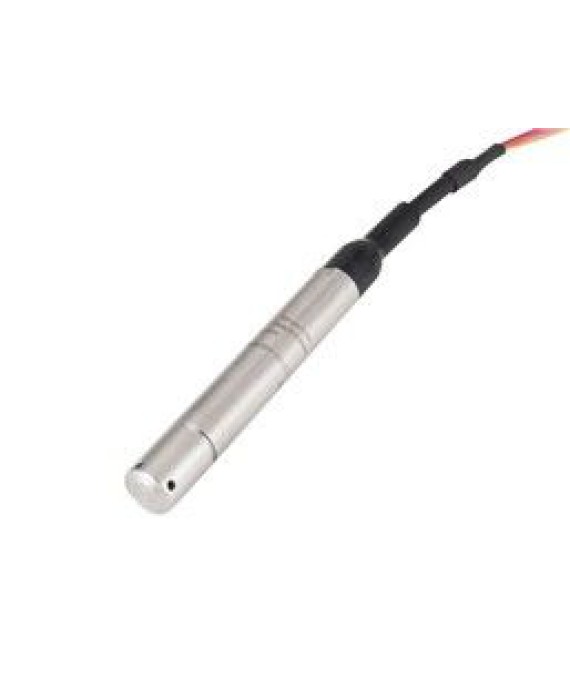

HPT607 Submersible Borehole Level Sensor
HPT607 Submersible Borehole Level Sensor
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
The submersible borehole level sensor is designed for ground water and drilling fluid level measurements. Based on the fluidics design, it can ensure the stability of the measurement.
Application
- Borehole level sensor - Deep well measure - Level sensor in drilling platform - Level measurement in storm water - Sediment water level measure
Advantages
1. Adopts a removable ceramic filter nose without cleaning difficulty
2. Running longer by reducing downtime and maintenance costs
3. Low-power output signals
4. lightning surge reverse protection
5. Imported chip and military grade digital PCB board
Technical Data
Range | 0~2m……500m H2O optional 80m max for SDI-12 signal |
Output | 4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU |
Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,3.5-36Vdc |
Accuracy | ≤ ±0.5%F.S(Typical); ≤±0.25%F.S(by customized) @25 degree C |
Nonlinear | <0.5%FS |
Resolution | 0.025% F.S |
Factor of safety | 1.5 F.S |
Electronic connection | Fixed cable and water proof IP68 |
Working temperature | -40-80℃(non-corrosive medium) |
Temp Compensation | 0℃~50℃ |
Certificate | CE, RoHS |
Frequency range | 1.850-3.500HZ |
Cable length | 40-60m |
