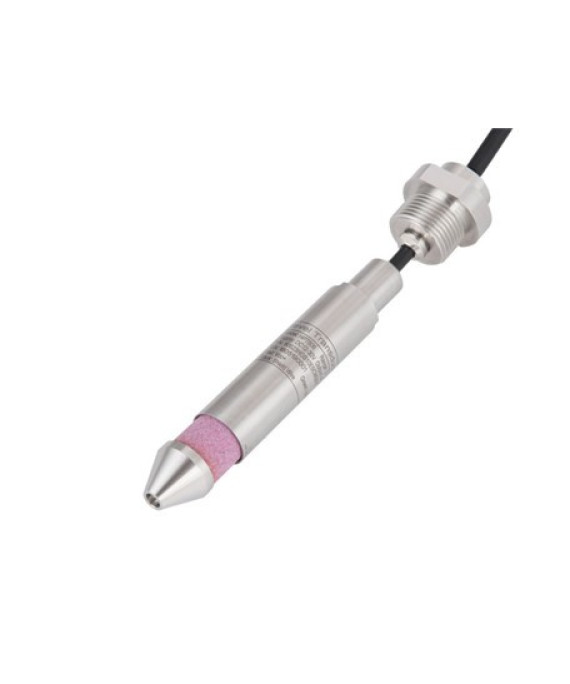

HPT606 Submersible Sludge Level Transmitter

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

The submersible sludge level transmitter is specially used to measure the sludge level in river or lake water.It adopts ceramic filter design, which can filter gravel and water weeds in the medium.

Pdf Download

Application

- River water level sensor - Level measurement in rivers or lakes - Flood monitoring/warning - Pond water level monitoring

Advantages

1. Adopts a removable ceramic filter nose without cleaning difficulty

2. Running longer by reducing downtime and maintenance costs

3. Low-power output signals

4. lightning surge reverse protection

5. Imported chip and military grade digital PCB board

Technical Data

Range	- 0~1 M…200 M H2O optional - 80m max for SDI-12 signal
Output	4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
Power Supply	7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,3.5-36Vdc
Accuracy	≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S; ≤ ±0.1%F.S optional
Working Temperature	-40℃~80℃(non-corrosive medium)
Temp Compensation	0°C~50°C
Zero Temp. Drift	0.2%FS/℃（≤100kPa）; 0.1%FS/℃（>100kPa）
FS Temp. Drift	0.02%FS/℃（≤100kPa）; 0.01%FS/℃（>100kPa)
Electric Connection	Fixed cable
Response Time	≤10 ms
Certificate	CE,RoHS
Application	Flood,Lake ,River,Pond,Dams etc
