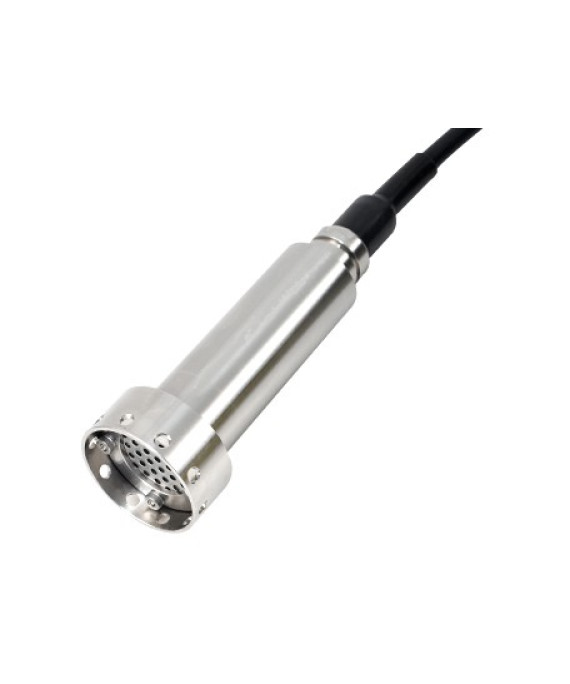

HPT605 Submersible Sewage Water Level Transducer

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

The submersible sewage water level transducer can be used for measuring in polluted environment for a long time. It can not only automatically conduct atmospheric and temperature compensation, but also reduce the temperature drift.

Pdf Download

Application

- Sewage water level measurement - Level measurement in water suction pump - Canal water level monitoring - Municipal sewage level measurement - Sediment water level measure

Advantages

1. A removable large diameter 40mm filter nose

2. Surge protection and polarity protection are available

3. Automatic conduction of atmospheric and temperature compensation

4. Fast response, suitable for noisy or adverse conditions

5. Low-Power output signals

Technical Data

Range	- 0~1 M…200 M H2O optional - 80m max for SDI-12 signal
Output	4-20mA,1-5V,0-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU
Power Supply	7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,12-30VDC,3.5-36Vdc
IP Rating	IP68
Accuracy	0.25%F.S by customized, 0.5%F.S standard
Working Temperature	-40-80℃(non-corrosive medium)
Temp Compensation	0°C~80°C
Zero Temp. Drift	0.2%FS/℃（≤100kPa）; 0.1%FS/℃（>100kPa）
FS Temp. Drift	0.02%FS/℃（≤100kPa）; 0.01%FS/℃（>100kPa)
Electric Connection	Fixed cable
Response Time	≤10 ms
Certificate	CE,RoHS
Application	City water, Drainage, Sewage Pump Station Etc
