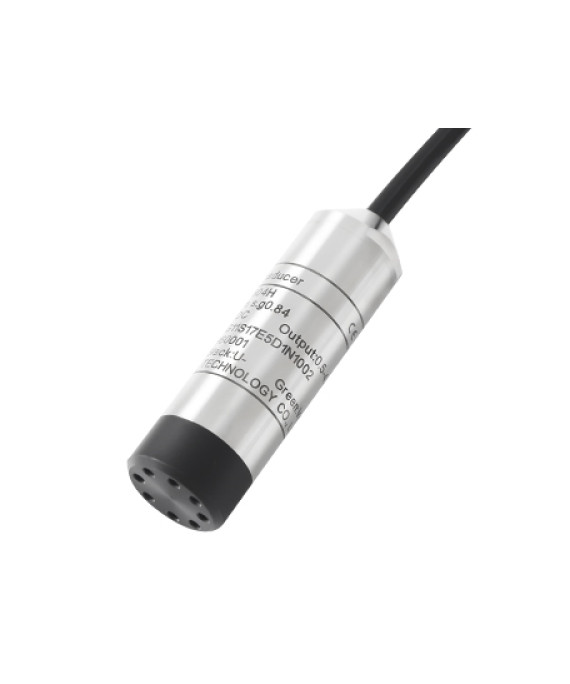

HPT604-H Water Level Sensor with Economical Model
HPT604-H Water Level Sensor with Economical Model
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
The main advantages of the fuel level sensor include high stability, affordable price, and safe capability in explosive occasions. Unlike submersible water level sensors, its filter cap is made of PTFE, which can not only measure water, but also oils, fuels, and chemicals, offering strong resistance to corrosion.
Application
- Urban and farm water systems - Oil testing for Fuel/Oil/Diesel tank - Agricultural irrigation - Underground water level measurement
Advantages
1. Multifunctional sensor for pressure or liquid level measurement.
2. Thread and flange connections are suitable for most working conditions.
3. PTFE filter cap is capable of water, fuels, chemical level measurement.
4. Small and high performance with the afforable price.
Technical Data
| Brand | Holykell |
| Model | HPT604 (Type H) |
| Range | 0~1 M…200 M H2O optional |
| Output | 0.5-4.5V |
| Power Supply | 5Vdc±5% |
| Accuracy | ≤ ±0.5%F.S (Typical); ≤ ±0.25%F.S (by customized) |
| Working Temperature | -25℃~70℃(corrosive medium) |
| Temp Compensation | 0°C~50°C |
| Temp Compensation | 0.75%FS/°C standard |
| Temp Compensation | 0.05%FS/°C standard |
| Temp Compensation | 10ms |
| Temp Compensation | CE ATEX RoHS |
| Application | Water,fuels, liquids, oils and more |
