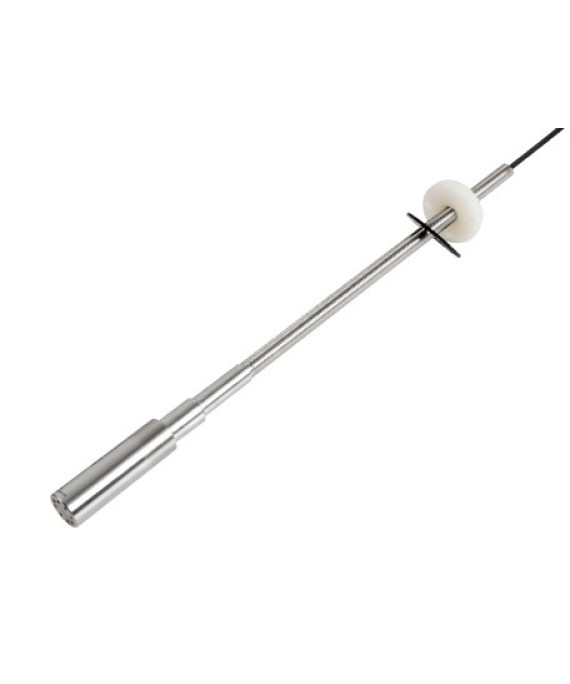

HPT604-GT Fuel Level Sensor for Generator Lower Fuel Tanks

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

This submersible fuel level sensor features high accuracy and high stability though low level in vibrating tanks. Its unique height adjustable design and fully welded structure enable it to work in different sizes of tanks for a long time.

Pdf Download

Application

- Diesel generators - Fuel tanks or diesel tanks - Refinery - Fuel/oil/diesel/petrol level measurement

Advantages

1. Stability and accuracy improved with probe and cable fixed.

2. Able to measure low fuel level in small or vibrating tanks.

3. Suitable for different sizes of tanks.

4. Adopt digital signal processing technology for good disturbance immunity.

5. Custom service provided for specific applications.

Technical Data

Parameter	HPT604 (type GT)
Level Range	150…2500mm by customize for RS485 Modbus. 500…2500mm by customize for 4-20mA&0-5V
Accuracy (Linearity/Hysteresis/ Repeatability)	Digital output: ≤±0.25%F.S; Analog output: ≤±0.25%F.S (2m≤LR≤2.5m); ≤±0.5%F.S (1m≤LR<2m); ≤±1.0%F.S (0.5m≤LR<1m); Including non-lin., rep. and hys. Optional; all based on 25degree C
Temp Compensation	0℃~80℃
Working Temp	-40-80℃(non-corrosive medium)
Medium compatible	Compatible with SUS304 Stainless Steel
Output	4-20mA,0-5V,RS485 Modbus RTU
Power Supply	7-30Vdc,8-30Vdc,3.5-36Vdc
Electronic connection	Fixed cable
Response time	≤10ms
Pressure Type	Gauge pressure
Water Proof	IP68
