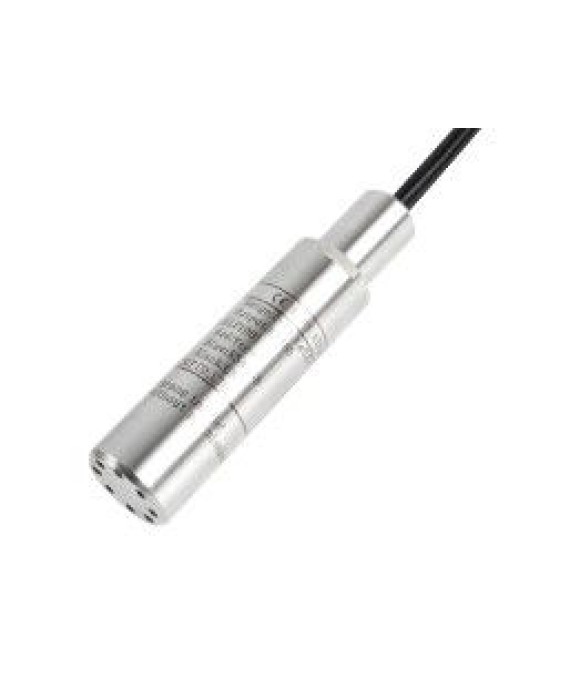

HPT604-Fuel Submersible Fuel Level Transmitter

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

Submersible Fuel Level Sensor is commonly known as "fuel probe", which is mainly used to measure the level of fuel, diesel or gasoline tanks. The probe is designed with a filter screen, which can filter most of the impurities and ensure the stability of the measurement.

Pdf Download

Application

- Can be used with diesel generators and wireless modules - Monitoring of Gasoline & Diesel Fuel Tanks - Level Measurement in Ballast Tanks - Level Measurement in Oil Tanks - Monitoring of Contain Coolant for Diesel Engines

Advantages

1. Unique impurity filter screen design for measurement accuracy

2. Customized FEP cable without fear of any corrosive environment

3. Measuring range 50m max

4. CE, RoSH and ATEX Approved

5. Throw in any fuel more than 10 years

Technical Data

Range	0-0.05 Bar…..5 Bar / 0-0.5M……..50m fuel level
Output	4-20mA,0-5V,01-5V,0-10V,0.5-4.5V,RS485 Modbus RTU
Power supply	10-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12-30VDC,3.5-36Vdc
Accuracy	1.0%F.S, 0.5%F.S optional
Working temperature	-30-80℃(non-corrosive medium)
Temp Compensation	0°C~50°C
Zero Temp. Drift	0.75%FS/°C（≤100kPa）; 0.5%FS/°C（>100kPa）
FS Temp. Drift	0.05%FS/°C（≤100kPa）; 0.03%FS/°C（>100kPa）
Electronic connection	Fixed cable and water proof IP68
Response time	≤10 ms
Cable	PUR, PE, FEP cable with vents
Certificate	CE,RoHS ATEX ExiaII CT6 Ga
