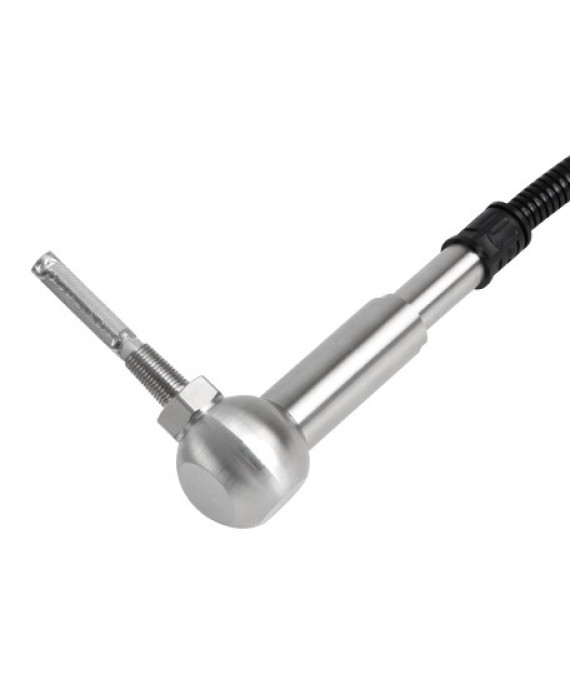

HPT604-BM Fuel Level Sensor with Fuel Tank Outside Bottom Mounting
HPT604-BM Fuel Level Sensor with Fuel Tank Outside Bottom Mounting
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
This fuel level sensor is installed on the tank outside bottom with unique fuel precipitation filtering design. It is able to measure the fuel level and temperature of different shapes of tanks, irregular shapes tanks supported.
Application
- Moving or static fuel or diesel tanks
- Irregular shapes of tanks
- Refinery
- Fuel/oil/diesel/petrol level measurement
Advantages
1. Unique impurities filtering mesh design
2. It works in both moving or static tanks
3. Simple installation and use
4. Customization supported
Technical Data
| Parameter | HPT604 (BM Type) |
| Pressure Range | 0-0.1Bar…..2 Bar / 0-1M……..20m H2O Optional (See P1 page description) |
| Accuracy | - ≤ ±0.5%F.S (≥2m level range and between0-50 degree C) - ≤ ±1.0%F.S (0.5m≤Level Range<2m level range and between0-50 degree C) |
| Working Temp | -40-80℃(non-corrosive medium |
| Storage Temp | -40℃~85℃ |
| Temperature Compensation | 0-50℃ (Range＜100kPa); -10℃~80℃(Range≥100kP) |
| Medium Compatible | Compatible with SUS304 Stainless Steel |
| Output | 4-20mA,0-5V,,RS485 Modbus RTU |
| Power Supply | 7-30Vdc,8-30Vdc,3.5-36Vdc |
| Electric Connection | Fixed cable and water proof 1P68 |
| Preasure Type | Gauge Pressure |
| Cable Optional | - Cable materials are optional according request, we offer 3 type special cable as follow: PE Cable（Water Proof）; PU Cable Diesel Proof）; FEP Cable（Anti-Corrosive for gasoline） |
