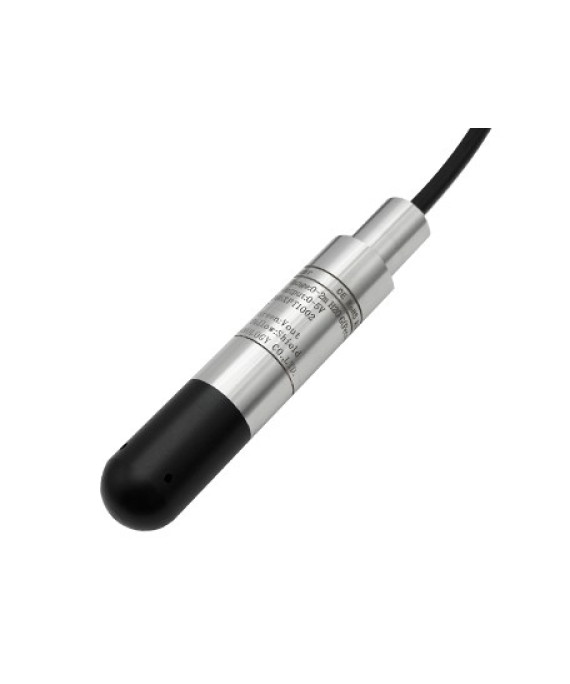

HPT604-BH High Performance and High Stability Submersible Level Sensor

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

Submersible level sensor with high accuracy up to 0.25%FS. It is designed with a PVDF filter cover design so that the stainless steel probe will not spark against the SST tank.

Pdf Download

Application

- Dry, thunderstorm, rain or other harsh enviornments - Tap-water supply system - Swimming pool level control - Fuel/oil/diesel/petrol level measurement - Refinery

Advantages

1. High accuracy up to 0.25%F.S with imported TE diffusion sillicon.

2. SUS304 housing and SUS316L diaphragm for use in harsh enviornments.

3. High quality PUR cable with 5 years warranty, water and fuel resistance.

4. Lightning and surge protection digital circuit board.

Technical Data

Brand	Holykell
Model	HPT604(Type BH)
Range	0~0.5m...200 m H2O optional 80m max for SDI-12 signal
Output	4~20mA,0~5V,1-5V,0~10V,0.5~4.5V, SDI-12,Dual 4-20mA,RS485
Power Supply	7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,12-30VDC,3.5-36Vdc
Accuracy	Better than 0.25%F.S
Working Temperature	-30℃~+80℃(non-corrosive medium)
Cable	PUR/PE/FEP cable optional
Certification	Exia IICT6, TUV RoHS and CE
