HPT603 Submersible Liquid Level Transducer
HPT603 Submersible Liquid Level Transducer
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
HPT603 submersible liquid level transducer is mainly used for liquid depth measurement. It supports different kinds of signal outputs and electronic connections.
Application
- Vessel and Storage Monitor System
- Control of Lift and Pumping Stations
- Level Measurement in Oil Tanks
- Monitoring of Gasoline & Diesel Fuel Tanks
Advantages
1. Simple installation
2. Fully sealed 316L stainless steel housing and 316L flat film design
3. Max 200m measuring range avaliable
4. IP68 full sealed waterproof design
5. High accuracy GE pressure core with 0.5%FS, 0.25%F.S by customized
Technical Data
Range | 0-0.5 M…200 M H2O optional |
Output | 4-20mA,1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU |
Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,3.5-36Vdc |
Pressure port | G1/2’’male, M20*1.5 male, 1/4’’NPT male; M10*1 male,flange mounting, or by customized |
Accuracy | 0.5%F.S standard, |
Working temperature | -40℃~80℃(non-corrosive medium) |
Temp Compensation | 0°C~50°C |
Zero Temp. Drift | 0.2FS/°C（≤100kPa）； 0.1%FS/°C（>100kPa） |
FS Temp. Drift | 0.02%FS/°C（≤100kPa）； 0.01%FS/°C（>100kPa） |
| IP Rating | IP68 |
Response time | ≤10 ms |
| Cable optional | PE Cable（ Water Proof ）; PUR Cable（ Oil Proof ）; FEP Cable（ Anti-Corrosive ） |
Certificate | CE,ExiaII CT6 Ga ,ATEX,RoHS |
Related Products

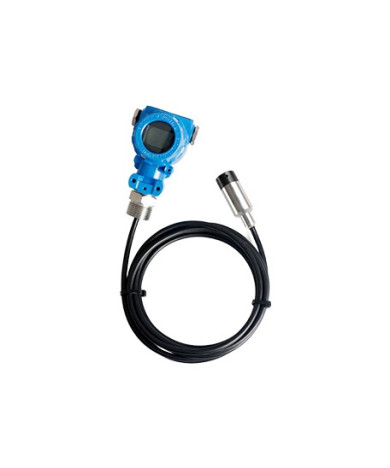

HPT612 Isolated Type Level Transmitter
