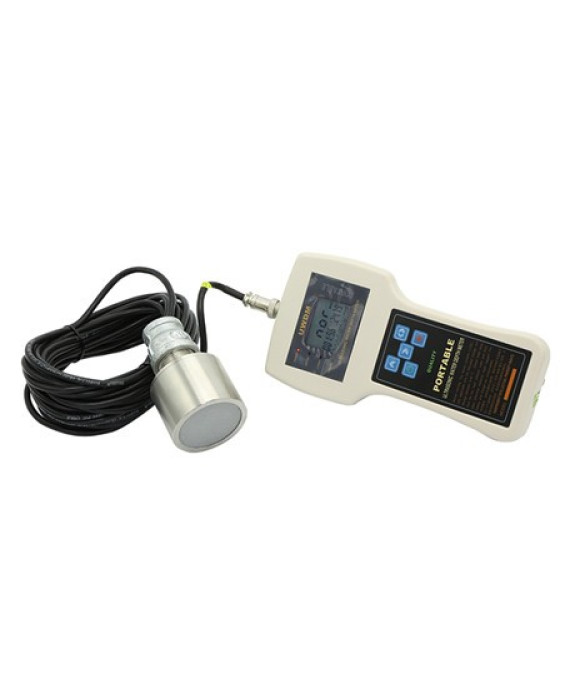

HLU Ultrasonic Liquid Level Meter

Brand:	Sensor
Product Code:	Sensor
Availability:	100

0 reviews Write a review

Rp0.0
Ex Tax: Rp0.0

Qty

Description
Reviews (0)

Ultrasonic liquid level meter combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Pdf Download

Application

- Non contact distance level measurement

- Food level monitoring

- Industrial fuel level measurement

- Mud water level measurement

Advantages

1. Support M49*1.5 mm threaded into type installation and coil clamping type installation

2. Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy

3. Housing adopts the NLEPE synthetic material IP66 waterproof

4. High quality terminal blocks ,Excellent anti-jamming is strong, long term stability

Technical Data

Item	Specification
Range	100m, 200m, 300m
Blind	≤500mm-800mm (according to range)
Draft Depth	500mm
Accuracy	±0.5%F·S(default)
Output Signal	4~20mA, RS485
Display Mode	Multi information and large screen LCD display
Keyboard	Five light touch buttons
Operation Temp	0~40°C(sensor),-10°C~50°C(instrument)
Working Power	Built-in rechargeable lithium batteries,6h standby time,special charger
Cable Way	Instrument :standard connector,sensor down-lead: standard 10m
Application Medium	Flesh water, sea water
Mounting Model	Instrument: hand-held portable;Sensor: Thread
Defend Grade	Sensor:IP68
