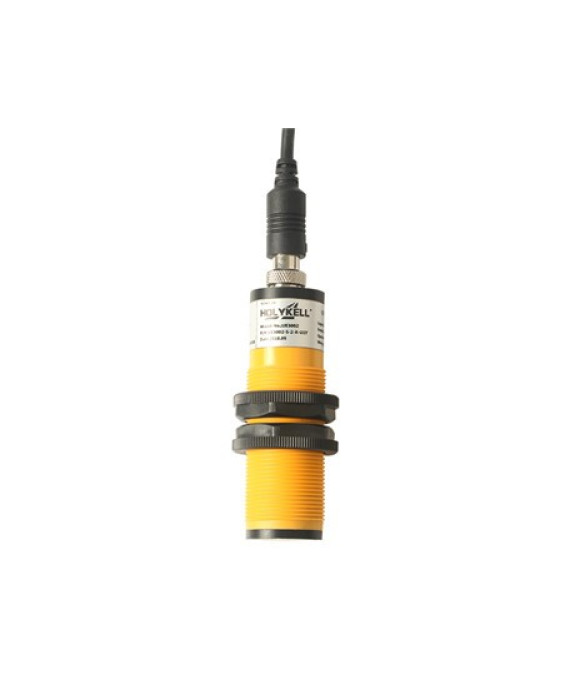

UE3002 Ultrasonic Distance Level Transmitter
UE3002 Ultrasonic Distance Level Transmitter
| Brand: | Sensor |
| Product Code: | Sensor |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
UE3002 Ultrasonic distance level transmitter combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application
- Non contact distance level measurement
- Food level monitoring
- Industrial fuel level measurement
- Tank level measurement
Advantages
1. Support M49*1.5 mm threaded into type installation and coil clamping type installation
2. Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
3. Housing adopts the NLEPE synthetic material IP66 waterproof
4. High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Technical Data
Level Range | 0-1...2 M |
Output | 1~5V/0~5V;4-20mA/RS485,RS232/NPN swith or relay |
Bline Zone | ≤20CM |
Power supply | 12-24V/50 mA |
Working temp | -20°C~+60°C |
Pressure port | M30*1.5 male thread |
| Application | Liquid, Solid |
Related Products
HPT604 Submersible Water Level Sensor
The Submersible Water Level Sensor is a general purpose submersible hydrostatic level transmitter. I..

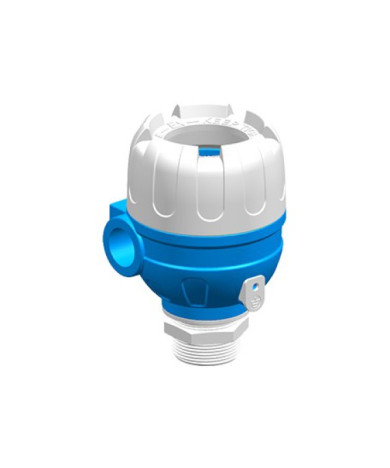

UE3005 Small Range Ultrasonic Level Transducer
