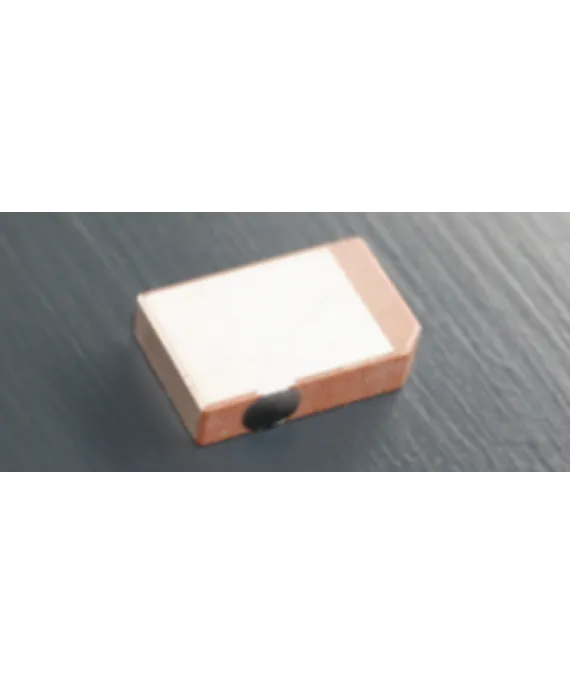

Omni-ID Fit 400 Embedded RFID Tag (866-868 MHz)

Omni-ID Fit 400 is a small form factor, high performance RFID tag optimized for metal substrates. Designed for tracking small metal assets, Fit 400’s high performance design provides handheld and portal compatibility. Fit 400 can also survive standard cleaning processes including autoclaves and is compatible with typical finishing processes, such as dipping, coating, heat shrinking and moulding for tools and other high value equipment. With its small form and high performance, Omni-ID Fit 400 tags are ideally suited to tracking small metal assets and or embedding within a metal cavity in applications such as: metal hand tools, embedding into metallic containers, heavy machinery, metal IT assets, autoclaves and high temperature sterilization, oil and gas.

Data Sheet — Omni-ID Fit 400 Embedded RFID Tag (866-868 MHz)

View Data Sheet

Why but this tag?

The Omni-ID Fit 400 Embedded RFID Tag is designed as a metal embedded RFID tag with a low price that will make it viable to track metal assets.

Configuration Guide

Features

- IP 68 rated.

- Optimized for metal substrates.

- One year manufacturer's warranty.

- Ideal for tracking small metal assets.

- Up to a 4 meter (13.1 ft) read range.

- Perfect solution when space is limited, but performance is demanded.

- Common applications: metal hand tools, healthcare equipment, and automotive post-paint processes.

- Compatible with typical finishing processes, such as dipping, coating, heat shrinking, and moulding for tools and other high value equipment.

Product Type

Tag

ELECTRICAL
Air Interface Protocol	EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency	ETSI (866-868 MHz)
IC Type	Alien Higgs 3
Memory	EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content	Unique, randomized number
Max Read Distance - Fixed Reader	Up to 4 m (13.1 ft)
Max Read Distance - Handlehelnd Reader	Up to 2 m (6.6 ft)
Applicable Surface Materials	On metal only

MECHANICAL
Tag Form Factor	Hard Tag
Tag Materials	Unpainted ceramic
Attachment Method	Omni-ID carrier (included)
Dimensions	18 x 12 x 3.5 mm (0.71 x 0.47 x 0.14 in)
Weight	3.9g

ENVIRONMENT
Operating Temperature	-20° to +85°C (-4° to +185°F)
