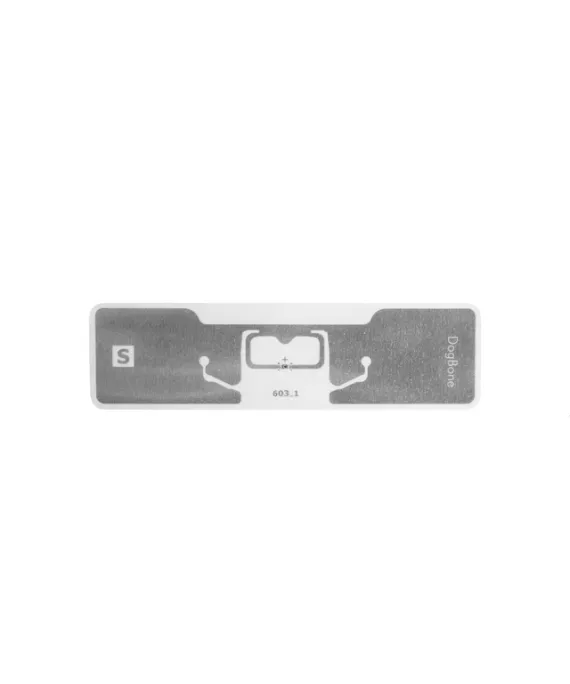

The Avery Dennison Smartrac DogBone RFID Wet Inlays excel with superior performance inside of demanding environments and on tough-to-tag materials, due to the inlay's exceptional tolerance against the detuning effect of high dielectric materials. With the M750 IC, the Avery Dennison Smartrac DogBone contains 96-bit EPC memory and 32-bit user memory. These inlays offer an enhanced 'autotune' adaptive RF tuning feature, which helps ensure quality work at peak efficiency, even in rapidly changing environments. The M750 IC is compatible with the Global GS1 UHF Gen2v2 standard and has a privacy mode that enables loss prevention and protects consumer privacy. Further, these inlays are manufactured to the industry's highest quality standards, as confirmed by the RFID lab at Auburn University.

View Data Sheet

Why Buy This Tag

The Avery Dennison Smartrac DogBone RFID Wet Inlay is designed for global supply chain, industrial, RTI and sports timing applications. This inlay, equipped with the M750 IC, is manufactured to the highest quality standards, with significant ARC accreditation for quality as confirmed by the RFID lab at Auburn University.

Features

- Global (860-960 MHz).

- Antenna size: 94 x 24 mm / 3.7 x 0.9”.

- Die-cut size: 97 x 27 mm / 3.8 x 1.1”.

- Memory: EPC 96 Bits, TID 96/48 Bits, User 32 Bits.

- Autotune feature, which helps to work at peak efficiency, even in rapidly changing environments.

- Privacy mode enabling loss prevention and protects consumer privacy.

- Manufactured to the highest quality standard with significant ARC accreditation for quality as confirmed by Auburn University.

- Applications: industry, supply chain management, and sports timing.

---

Information

Product Type: Tag ELECTRICAL:   Air Interface Protocol: EPC Class 1 Gen 2v2 (ISO 18000-63 TYPE C) Operating Frequency: Global (860-960 MHz) IC Type: Impinj M750 Memory: EPC 96 Bits, User 32 Bits, TID 96/48 Bits EPC Memory Content: Not published Max Read Distance: Up to 20 m (65.6 ft) Applicable Surface Materials: Plastic, cardboard, glass MECHANICAL:   Tag Form Factor: Wet inlay Tag Materials: Printable PET (Thermal Transfer) Recommended Ribbon: Performance resin Attachment Method: Acrylic, water borne adhesive Dimensions: 97 x 27 mm (3.8 x 1.1 in) Weight: 1 g ENVIRONMENT:   Operating Temperature: -40° to +85°C (-40° to +185°F)
