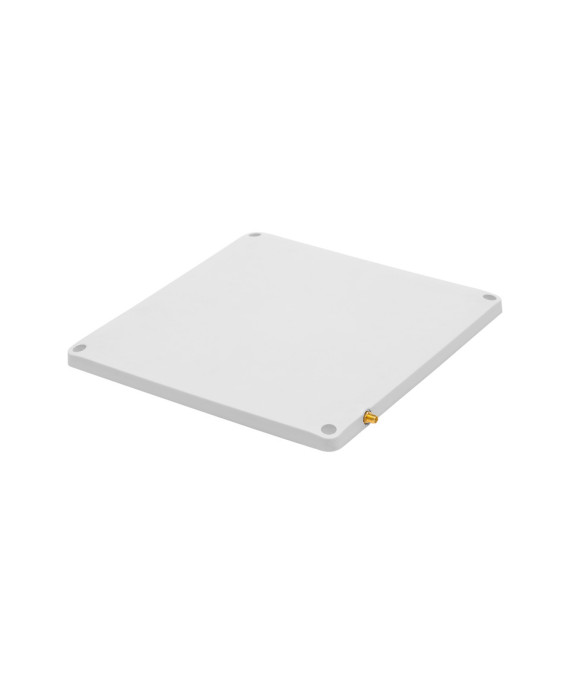

The Times-7 industry leading ultra-low profile design is now available in a compact 250mm / 10 inch square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas.

View Data Sheet

---

What's Included?

- Times-7 SlimLine A5010 Antenna Unit

- One-Year Standard Equipment Warranty

Why Buy This Antenna

The Times-7 SlimLine A5010 Circular Polarized Antenna is a low-cost, small form-factor RFID antenna that is versatile enough to meet the needs of virtually any industrial RFID application.

Features

- Up to 9 m (29 ft) read range.

- Just 14 mm / 0.55 in thick.

- IP 67 rated for outdoor use and industrial applications.

- High performance and rugged design.

- Thin, light, and attractive aesthetics.

- Ideal for space constrained applications.

- Already proven in retail, race timing, access control, and more.

- Reflection protection that guarantees uninterrupted high read performance.

- Multiple mounting options.

- Extremely low axial ratio.

---

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type: Antenna ELECTRICAL:   Operating Frequency: FCC (902-928 MHz), ETSI (865-867 MHz) Polarization: Right hand Circular Gain: 8 dBic Max Read Distance: Up to 9m (29 ft) Elevation Beamwidth: 68° Azimuth Beamwidth: 68° MECHANICAL:   Connector Type: SMA female (connects to SMA male) Cable: Not included Mounting: Stud mount Dimensions: 250 x 250 x 14 mm (9.85 x 9.85 x 0.55 in) Weight: 0.73 kg (1.6 lbs) ENVIRONMENT:   IP Rating: IP 67 Operating Temperature: -20° to +55°C (-4° to 131°F)
