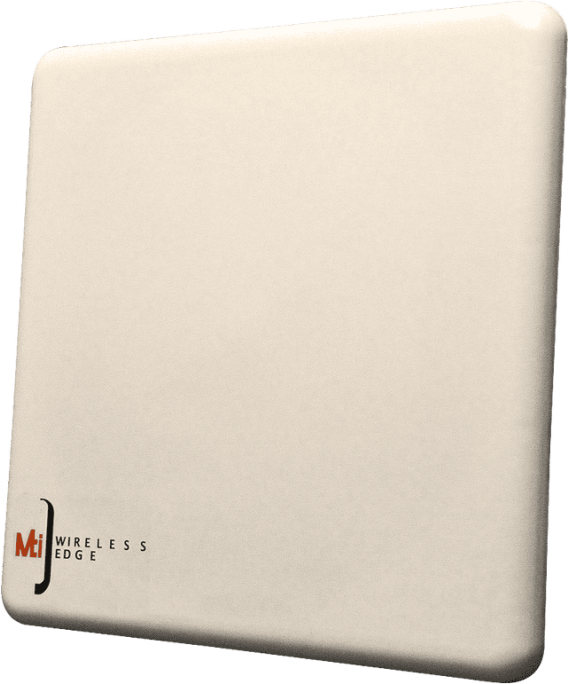

The MT-263003/N Linearly Polarized outdoor RFID Antenna from MTI measures in at 12x12 inches. This unit operates at 10 dBic gain, covers 50 x 50 degrees beamwidth, and is an excellent choice for passive UHF RFID applications in the FCC band of 902-928 Mhz. The MT-263003/N carries an IP67 rating and is perfect for outdoor installations such as parking gates, overhead race timing trusses and distribution center yards. It comes with a fixed N-female connector on the back plate and 4 threaded mounting studs.

View Data Sheet

---

What's Included?

- MTI MT-263003 RFID Antenna Unit

- Fixed N Female Connector

Why Buy This Antenna

The MT-263003/N from MTI is a 12x12 inch, IP 67 rated linearly polarized RFID antenna operating at 902-928 Mhz FCC with 10 dBic gain and a fixed N female connector.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type:	Antenna
ELECTRICAL:
Operating Frequency:	FCC (902-928 MHz)
Polarization:	Linear
Gain:	10 dBi
Max Read Distance:	Not published
Elevation Beamwidth:	50°
Azimuth Beamwidth:	50°
MECHANICAL:
Connector Type:	N-Type female (connects to N-Type male)
Cable:	Not included
Mounting:	4 threaded studs
Dimensions:	305 x 305 x 25 mm (12 x 12 x .98 in)
Weight:	1.5 kg (3.3 lbs)
ENVIRONMENT:
IP Rating:	IP 67
Operating Temperature:	-55° to +71°C (-67° to +159.8°F)
