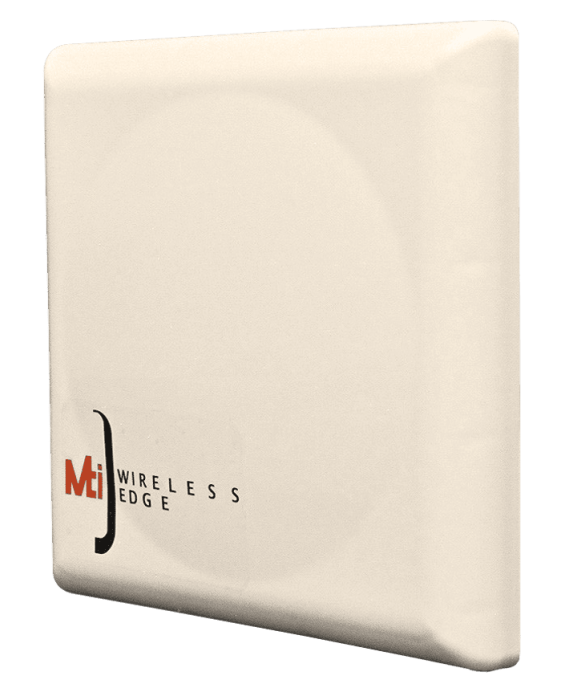

The MTI MT-242025 Antenna is a global, right hand circularly polarized antenna that is rated IP 67 and can be used outdoors.

View Data Sheet

---

What's Included?

MTI MT-242025 Antenna Unit

Why Buy This Antenna

The MT-242025/TRH/A RFID Antenna offers a wideband, rugged antenna solution in a small package.

Features

- Up to 9 m (29 ft) read range.

- Just 14 mm / 0.55 in thick.

- IP 67 rated for outdoor use and industrial applications.

- High performance and rugged design.

- Thin, light, and attractive aesthetics.

- Ideal for space constrained applications.

- Already proven in retail, race timing, access control, and more.

- Reflection protection that guarantees uninterrupted high read performance.

- Multiple mounting options.

- Extremely low axial ratio.

---

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type:	Antenna
ELECTRICAL:
Operating Frequency:	Global (865-956 MHz)
Polarization:	Right hand circular
Gain 865-870 MHz:	7.0 dBic
Gain 902-928 MHz:	7.5 dBic
Gain 950-956 MHz:	6.5 dBic
Max Read Distance:	Not published
Elevation Beamwidth:	72°
Azimuth Beamwidth:	74°
MECHANICAL:
Connector Type:	RP-TNC female (connects to RP-TNC male)
Cable:	Not included
Mounting:	Uses a 66 mm square mounting bracket
Dimensions:	190 x 190 x 30 mm (7.4 x 7.4 x 1.1 in)
Weight:	0.85 kg (1.87 lbs)
ENVIRONMENT:
IP Rating:	IP 67
Operating Temperature:	-55° to +71°C (-67° to +159.8°F)
