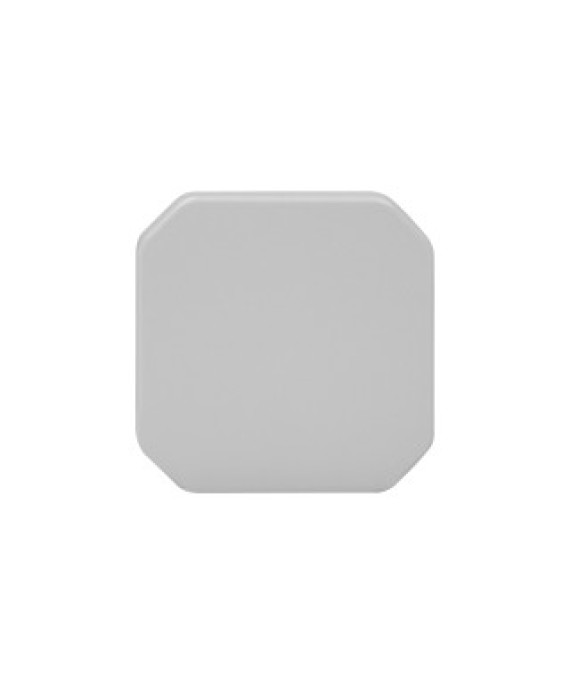

The Laird S9025PR/S8655PR is the latest addition to the high-performance RFID antenna lineup and is the only UHF RFID antenna available to the market that offers no-compromise performance in a small package. At only 5.2” square the antenna offers a gain specification of 5.5 dBic and axial ratio better than 2 dB. In effect the antenna is providing the performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage by virtue of its reduced size.

View Data Sheet

---

Why Buy This Antenna

The Laird S9025PR/S8655PR RFID Antenna offers exceptional read range for its size. It also sports an IP rating of 67 which makes it suitable for harsh environments.

Features

- Circularly polarized.

- Low VSWR and axial ratio.

- Rugged, ultra heavy duty construction.

- IP 67 rated.

- Weather and UV resistant radome.

- High performance in a small package.

- Wide range of connector and cable options.

- Right hand CP version.

---

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type:	Antenna
ELECTRICAL:
Operating Frequency:	FCC (902-928 MHz), ETSI (865-868 MHz)
Polarization:	Circular
Gain:	5.5 dBi
Max Read Distance:	Not published
Elevation Beamwidth:	100°
Azimuth Beamwidth:	100°
MECHANICAL:
Connector Type:	N-Type female (connects to N-Type male)
Cable:	Not included
Mounting:	Threaded stud
Dimensions:	132 x 132 x 18 mm (5.2 x 5.2 x .71 in)
Weight:	0.36 kg (0.8 lbs)
ENVIRONMENT:
IP Rating:	IP 67
Operating Temperature:	-30° to +70°C (-22° to +158°F)
