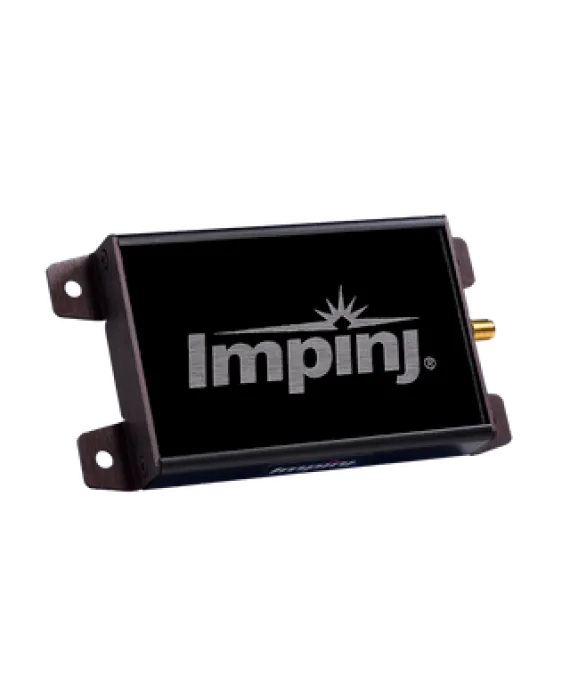

Impinj's Mini-Guardrail reader antenna operates effectively at read distances of 7.5 cm or less making it a demanding antenna for item-level deployments. Ideally for applications like access control, ticketing, document control, packaging lines, the Mini-Guard. The Mini-Guardrail Antenna is perfect for a wide selection of tagging because it is virtually immune to RF blocking elements like liquids, and metallic packaging. These characteristics make the Impinj Mini-Guardrail Antenna a strong and highly popular near-field antenna. Additionally, this antenna requires 1 SMA to R-TNC cable (sold separately).

View Data Sheet

---

Why Buy This Antenna

Impinj Mini-Guardrail antenna is an ideal for access control or ticketing where a controlled read range is needed.

Features

- Strong near-field performance for reading tags at a distance of 0-7.5 cm.

- Small form factor of 70 x 133 x 19 mm.

- Weak far-field gain to minimize stray reads.

- Broadband design to enable world-wide operation.

---

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Type: Antenna ELECTRICAL:   Operating Frequency: Global (865-954 MHz) Polarization: Linear Gain: -20.0 dBi Max Read Distance: Up to 7.5 cm Elevation Beamwidth: Not published (near field) Azimuth Beamwidth: Not published (near field) MECHANICAL:   Connector Type: SMA female (connects to SMA male) Cable: Not Included, requires 1 SMA to R-TNC cable Mounting: Not published Dimensions: 69.85 x 133.35 x 19.05 mm (2.75 x 5.25 x 0.75 in) Weight: 0.11 kg (0.25 lbs) ENVIRONMENT:   IP Rating: IP 41 Operating Temperature: 0° to –40 C° (32° to 104 F°)
