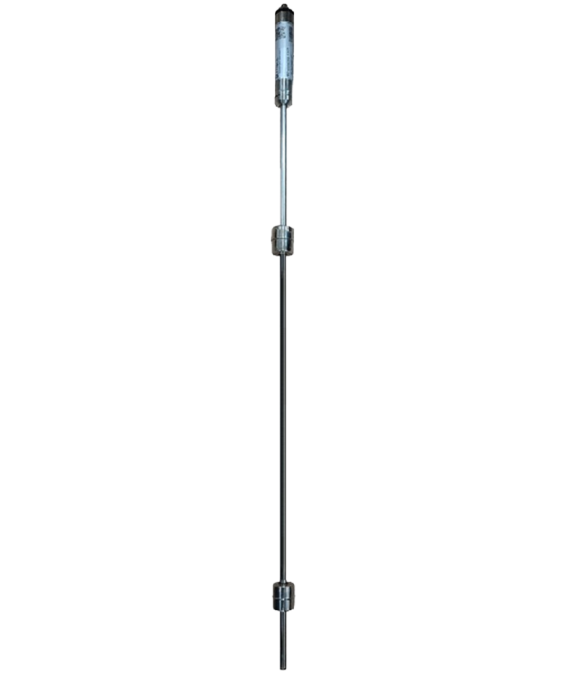

HM20S Fuel Sensor
HM20S Fuel Sensor
| Brand: | Automatic Tank Gauge |
| Product Code: | Automatic Tank Gauge |
| Availability: | 100 |
-
Rp0.0
- Ex Tax: Rp0.0
HM20S, Automatic Tank Gauge (ATG), is a magnetostrictive sensor to measure oil and water levels and the temperature of oil in a storage tank. It can offer reliable and accurate perfomance in terms of Fuel-Management-System and Leak-Detection-System. HM520S is Intrinsic Safety Eplosion-proof type certified by IECEx which is International Certifications Scheme covering products that meet the requirements of International Standars.
Features
- A resolution of 0.001mm
- Intrinsic Safety Certified
- Leak detection: 0.8L/1hour
- Small Floaters- 40mm
- Easy Intallation
- Code: Ex ia A T4 Ga
Specs of Sensor HM520S
| Resolution | 0.01% FS or less (unit. 1/1,000 mm) |
| Linearity | ±0.05% FS |
| Temp. change | 40ppm FS/S or less (Unit 0.1°C) |
| Scan Frequency | 500-1000Hz |
| Maximum Pressure | 30KGf/cm² |
| Power Supply | DC12V, 70mA |
| Temp. Range For Use | -40 ~ +65°C |
| Temp. Range For Storage | -50 ~ +85°C |
| Earthquake Proof | 6G (40Hz) |
| Impact Resistance | 50G |
| Explosion-Proof | Intrinsic Safety (Ex ia IIA T4) |
| Sensing Type | Magnetostrictive Technology |
| Communication Type | RS-485 |
| Measurement Range | 500~12000mm |
| No. of Floaters | Oil % Water (2 ea) |
| Size of Floaters | 40mm |
